Logo Filter in Cambria FTC

Feature Overview​

Cambria FTC provides a Logo Filter that allows users to overlay images or video files as logos on their source video. This guide explains the two ways to access the Logo Filter UI and describes each function within the UI in detail.

Accessing the Logo Filter UI​

First Way​

  1. Upload a video file to FTC.
  2. Click on the Filter icon.

Screenshot

  1. Click on the arrow next to ADD and select Logo.

Screenshot

Second Way​

  1. Upload a video file to FTC.

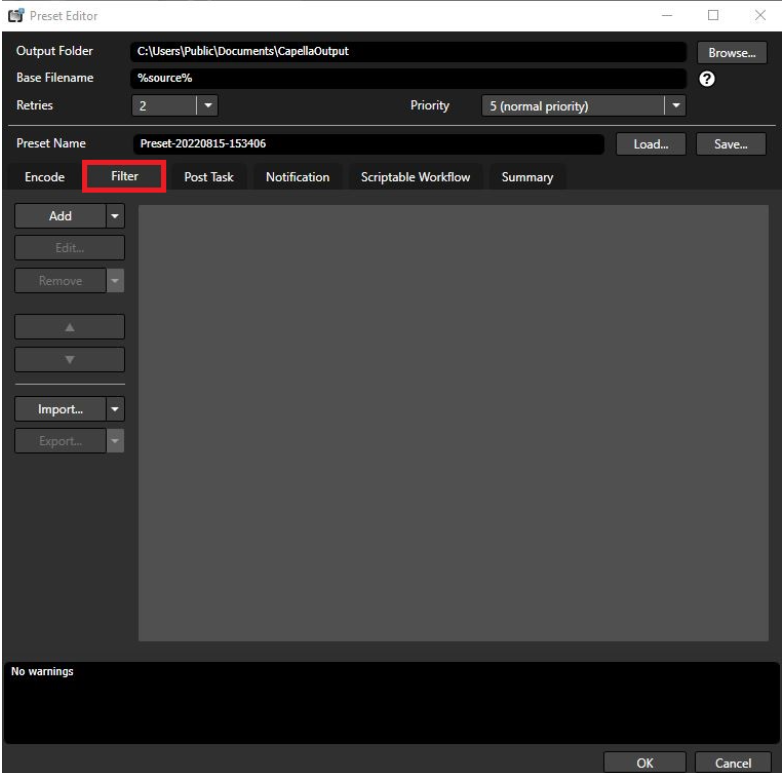

  2. Click on the Encoding tab.
  3. Add a preset and click on the Filter tab.

Screenshot

  1. Click on the arrow next to ADD and select Logo.

Screenshot

Logo Filter UI Breakdown​

Below is a description of the available controls and functions in the Logo Filter user interface:

Screenshot

  1. These buttons control the scrolling of the source. You may scrub through the source or use the buttons.
    From left to right, they are:
  • Go to Beginning
  • Go to Previous Frame
  • Pause / Play
  • Go to Next Frame
  • Go to End

Source Selection​

If you have multiple sources, you can use this dropdown to select which source to apply the filter to.

Jump to Time/Timecode​

Instead of using playback buttons, you can skip directly to a specific time or timecode.

Timecode Display​

This box shows:

  • Current time in the video
  • Current timecode
  • Total duration of the video

Load Logo File​

Click Browse to add the source of your logo. Supported image formats include:

  • .bmp, .jpg, .jpeg, .png, .tif, .tiff, .tga

You may also add a .mov file as a logo.
To do this, select .mov in the dropdown menu when browsing.

Logo Properties​

This panel allows you to adjust:

  • Size
  • Transparency
  • Offset

You may also choose to apply the logo filter to a specific segment of the source.

Apply the Filter​

Click OK to apply the filter and save your settings.
